SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃

Brand Name : SJK

Certification : SGS, RoHS, REACH

Place of Origin : China

MOQ : 1000pcs

Price : negotiable

Payment Terms : T/T

Supply Ability : 70KKpcs/M

Delivery Time : 4-6 wks

Packaging Details : 1Kpcs/Reel

Model : 6S Series (SMD 7050 VCXO)

Frequency range : 1~200MHz

Output type : CMOS

Supply voltage : 3.3V/5V

Size : 7.0*5.0*1.3mm

Applications : PC, Base station, Ethernet, SONET, Sever, etc

Pins Number : 6 Pins

Contact Now

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃

Features

Voltage Controlled Crystal Oscillator (VCXO)

7050 size, 1.3mm high, SMD 7050 VCXO

CMOS output, output frequency range from 1MHz to 200MHz

Excellent low-phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Communications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Specifications

Type	6S Series (SMD 7050 VCXO)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V
Frequency Range	1~200MHz
Supply Current	60mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	5ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Linearity	10% Max.
Phase Jitter (12KHz~20MHz)	1pS Max.
Packing Unit	1000pcs./Reel

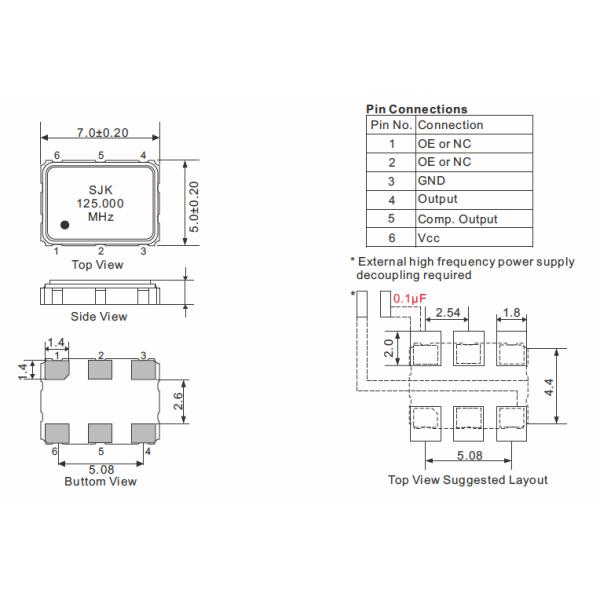

Dimensions [mm]
